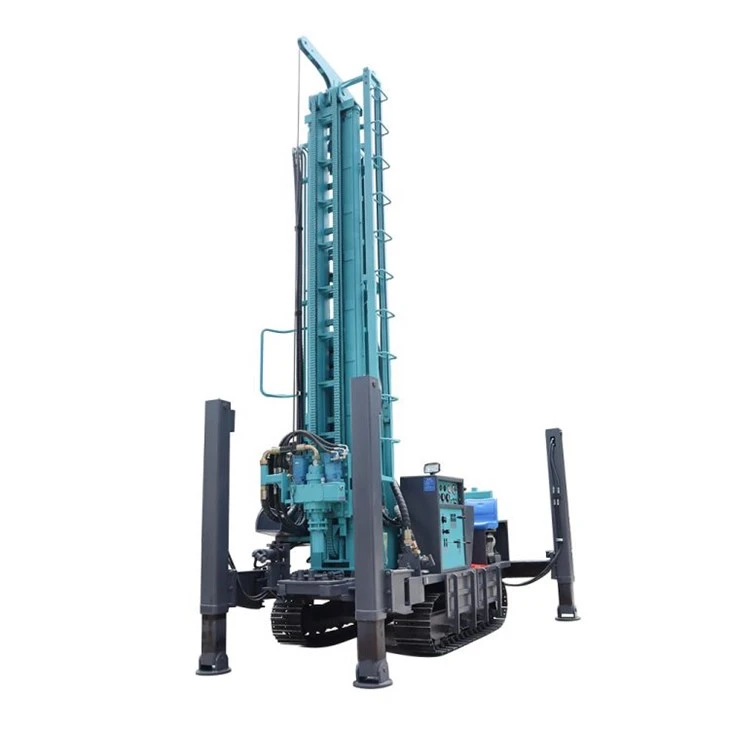

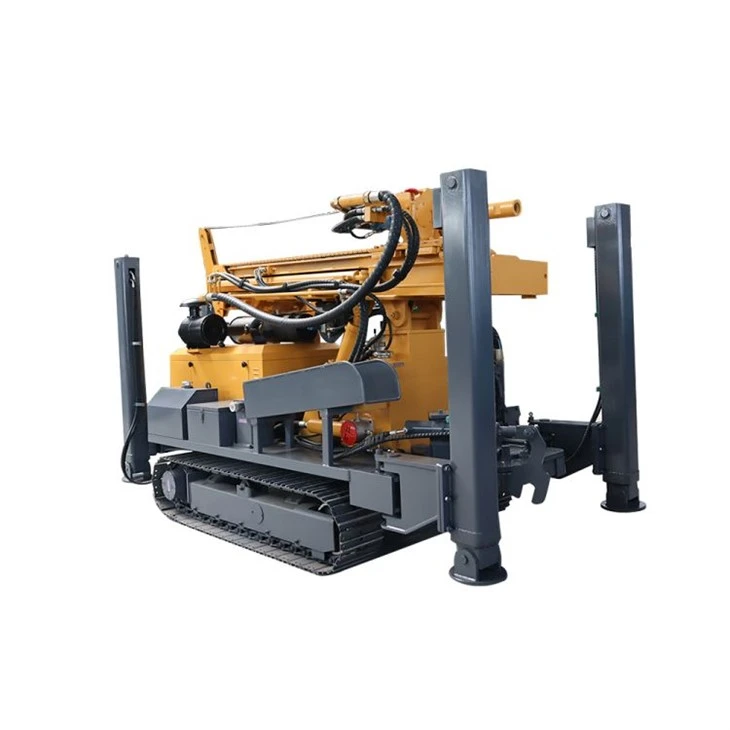

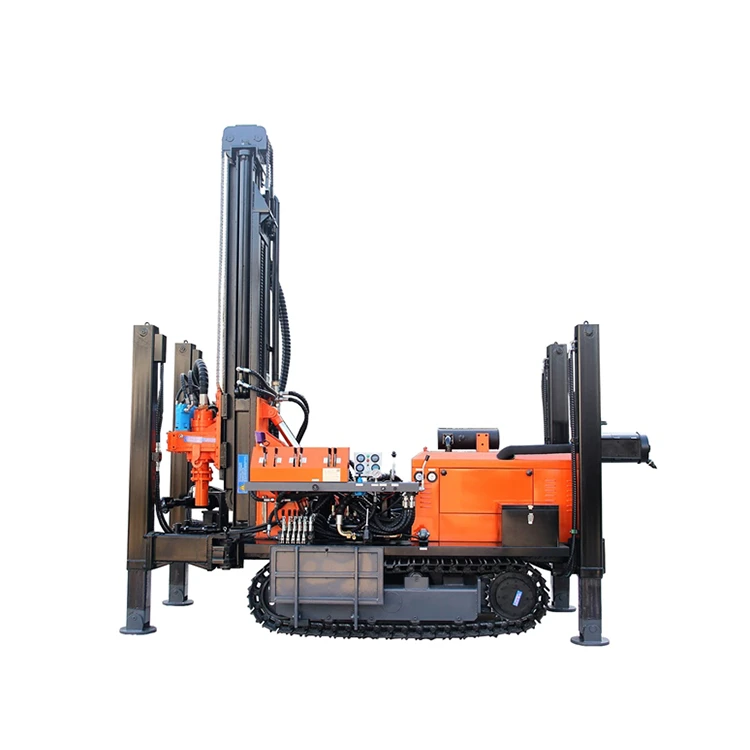

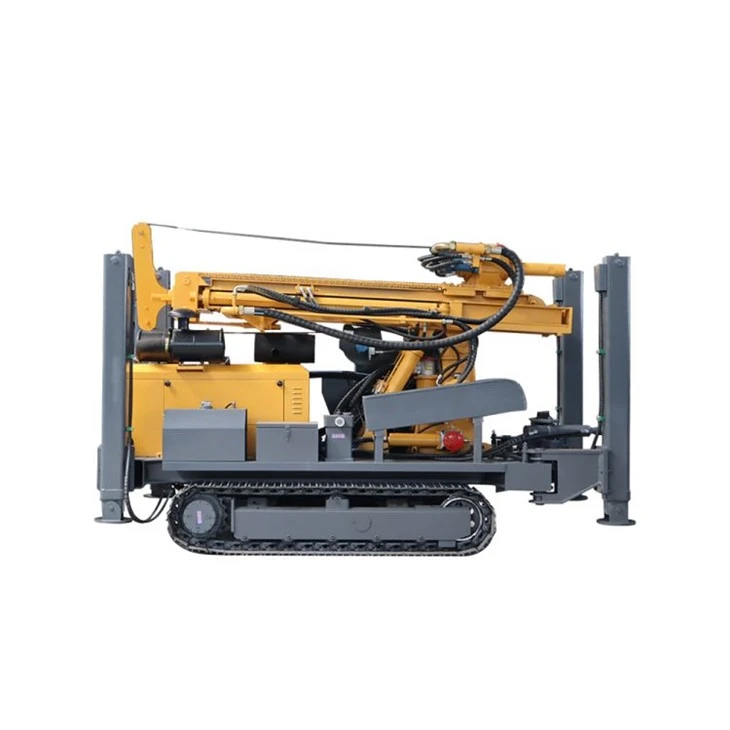

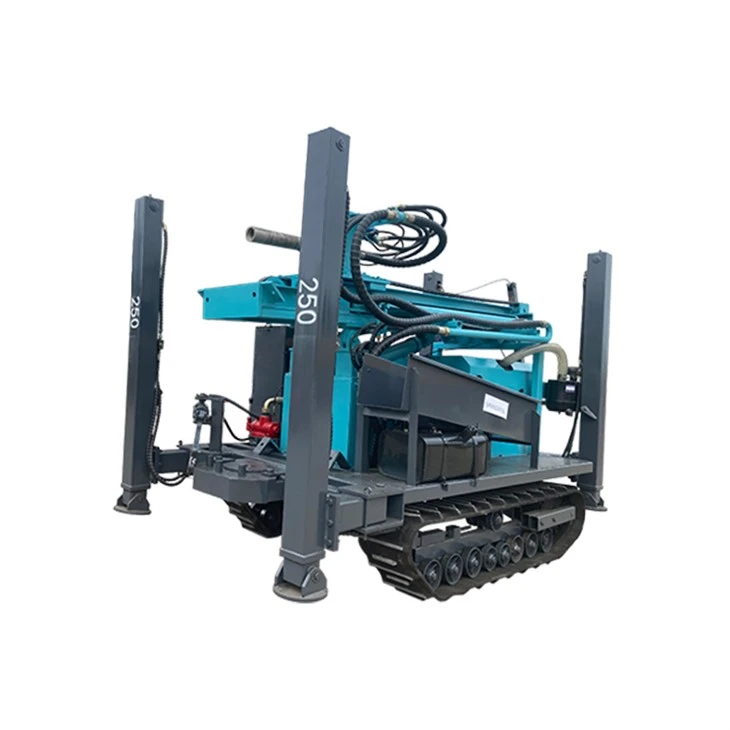

Crawler Water Well Drilling Rig | MW Series Drilling Machine Specifications
Specifications & Technical Parameters
MW Series Models (180m–300m)
| Model | MW-180 | MW-250 | MW-280 | MW-300 |
|---|---|---|---|---|
| Drill depth (m) | 180 | 250 | 280 | 300 |
| Drill diameter (mm) | 140–254 | 140–254 | 140–305 | 140–325 |
| Equipped Engine | YC 65kW | YC 70kW | YC 75kW | YC 85kW |
| Drill pipe diameter (mm) | φ76, φ89 | φ76, φ89 | φ76, φ89 | φ76, φ89, φ102 |
| Drill pipe length (m) | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0 |
| Swing speed (rpm) | 45–70 | 45–70 | 40–70 | 40–70 |
| Swing torque (N.m) | 3200–4600 | 3300–4500 | 4500–6000 | 5700–7500 |
| Rig lifting force (T) | 12 | 14 | 17 | 18 |
| Weight (T) | 5.2 | 4.1 | 7.6 | 7.2 |
| Dimension (mm) | 4000×1630×2250 | 4000×1800×2400 | 5900×1850×2360 | 4100×2000×2500 |
| Model | MW-400 | MW-500 | MW-680 | MW-800 |
|---|---|---|---|---|
| Drill depth (m) | 400 | 500 | 680 | 800 |
| Drill diameter (mm) | 140–350 | 140–350 | 140–400 | 140–400 |
| Equipped Engine | DEUTZ 103kW | YC 118kW | Cummins 154kW | Cummins 194kW |
| Drill pipe diameter (mm) | φ89, φ102 | φ102, φ108, φ114 | φ102, φ108, φ114 | φ102, φ108, φ114 |
| Drill pipe length (m) | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 |
| Swing speed (rpm) | 50–135 | 40–130 | 45–140 | 45–140 |
| Swing torque (N.m) | 7000–9500 | 7500–10000 | 8850–13150 | 9000–14000 |
| Rig lifting force (T) | 25 | 26 | 30 | 36 |
| Weight (T) | 9.4 | 11.5 | 13 | 13.5 |
| Dimension (mm) | 5950×2100×2600 | 6200×2200×2650 | 6300×2300×2650 | 6300×2300×2950 |
Product Details
Brand Name: D Miningwell
Certifications: CE, ISO
Minimum Order Quantity: 1 set
Packaging: 40HQ / 20GP container
Delivery Time: 15–20 working days
Payment Terms: L/C, T/T, Western Union
Key Features of D Miningwell Water Well Drilling Rig
Top-drive rotary drilling structureThe top-drive design enables quick installation and removal of drill pipes, reduces auxiliary operation time, and improves overall drilling efficiency.
Multi-functional drilling performanceThis series rig supports multiple drilling processes, including down-the-hole drilling, mud drilling, roller cone drilling, follow-through drilling, and core drilling. It can be equipped with mud pumps, generators, welders, and cutters according to customer requirements, and is standard with multiple winches for diversified operations.
Crawler-type traveling systemEquipped with multi-axis steering control and flexible steering modes, the rig has a small turning radius and strong off-road passability, suitable for various working terrains.
Ergonomic operation systemThe centralized control platform is designed based on ergonomics, providing comfortable and convenient operation for long hours of work.
Full hydraulic top-drive power headThe power head adopts a floating device at the output end, which effectively reduces wear on drill pipe threads and extends service life.
Product Advantages
Advantages of Crawler Water Well Drilling Rig
Engine: Equipped with well-known brand Guangxi Yuchai engine (55kW turbo version), ensuring stable and strong power output.
Crawler drive: Motor with gearbox design improves durability and extends service life.
Hydraulic system: Patented parallel gearbox separates the oil pump unit, providing sufficient power with reasonable distribution. The hydraulic system is specially designed for easy maintenance and lower cost.
Rotary head: Integrated cast gearbox with dual-motor drive, delivering high torque, strong reliability, and low maintenance cost.
Rig chassis: Professional excavator-grade chassis with strong bearing capacity and wide track plates, minimizing damage to concrete surfaces.
Lifting system: Patented composite arm structure with double cylinders provides strong lifting force and long stroke. Limiters protect hydraulic cylinders and ensure safe operation. All hydraulic pipes are protected to extend service life.
Application
D Miningwell cooperates with strategic partners to provide customized project solutions according to client needs. Our engineering and consulting teams have decades of experience in oil and gas, bridge construction, infrastructure, tunneling, mining, and other construction industries. We provide reliable drilling equipment and professional technical support for global customers.
Shipping&Payment
Each D Miningwell drilling rig undergoes strict loading and safety inspections to ensure cargo safety during container transportation.
We accept multiple payment methods: credit card, L/C, T/T, Western Union.Transportation supports sea freight and air freight to meet different delivery requirements.
